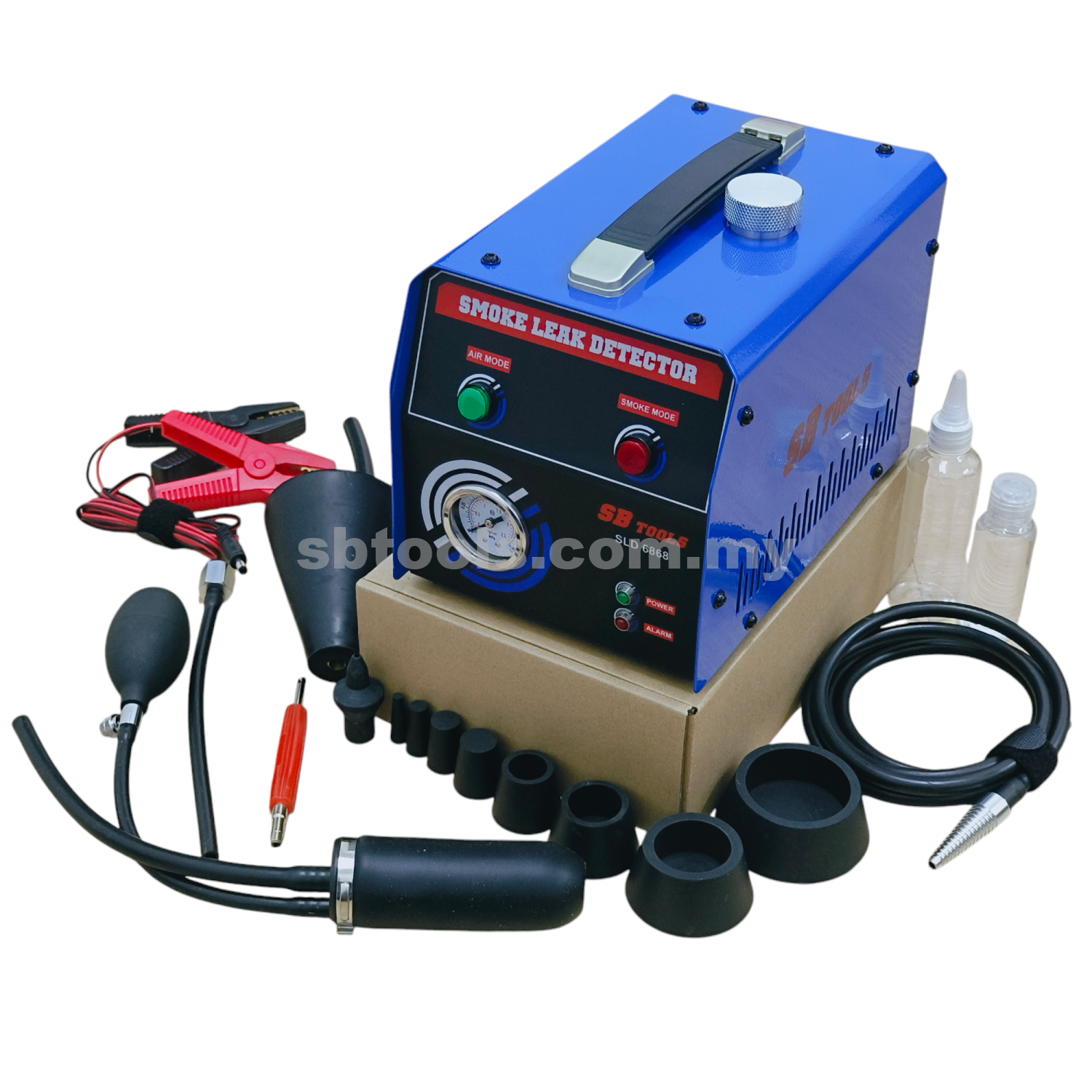

Smoke Leak Detector Set


  • Used to position leakage on tube cooler, pipe, exhaust system, intake pipe, turbo system, etc.
  • There are many different kind of fittings, which can be used for all kinds of pipes.
  • Refer to the description below for more details.

Out of stock

SKU: SLD3501 Categories: ,

How To Use:

Step 1: Connect the 12V Car Battery:

  • Clip the RED battery to the positive pole (+).
  • Clip the BLACK battery to the negative (-).

Step 2: Switch ① the power (ON):

  • The ② Power Indicator turn GREEN.  (If you connect the pole wrongly, the YELLOW light would on)
  • The machine is equipped with protection device,so it will not be damaged if connect pole incorrectly.
  • If you are using this machine for the FIRST time, please inject 1-2ml baby oil in ⑤ Baby Oil Inlet. Then fill 0.5-1ml for each time.
  • Please use Baby Oil ONLY!!

Step 3: Start Heating to Produce Smoke:

  • Press the ③ Start Heating Button,④Heating Indicator light turns YELLOW.
    It would reach workable smoke volume after 90 seconds, then press the ③ Heating Button again to stop heating.
  • The machine would stop automatically after 5 minutes . Repeat Step 4 as needed, and fill baby oil according the smoke.
  • Clean the Smoke Tube with dust gun after each use. The residue hardening baby oil cause clogs in tube.
Weight 5 kg
