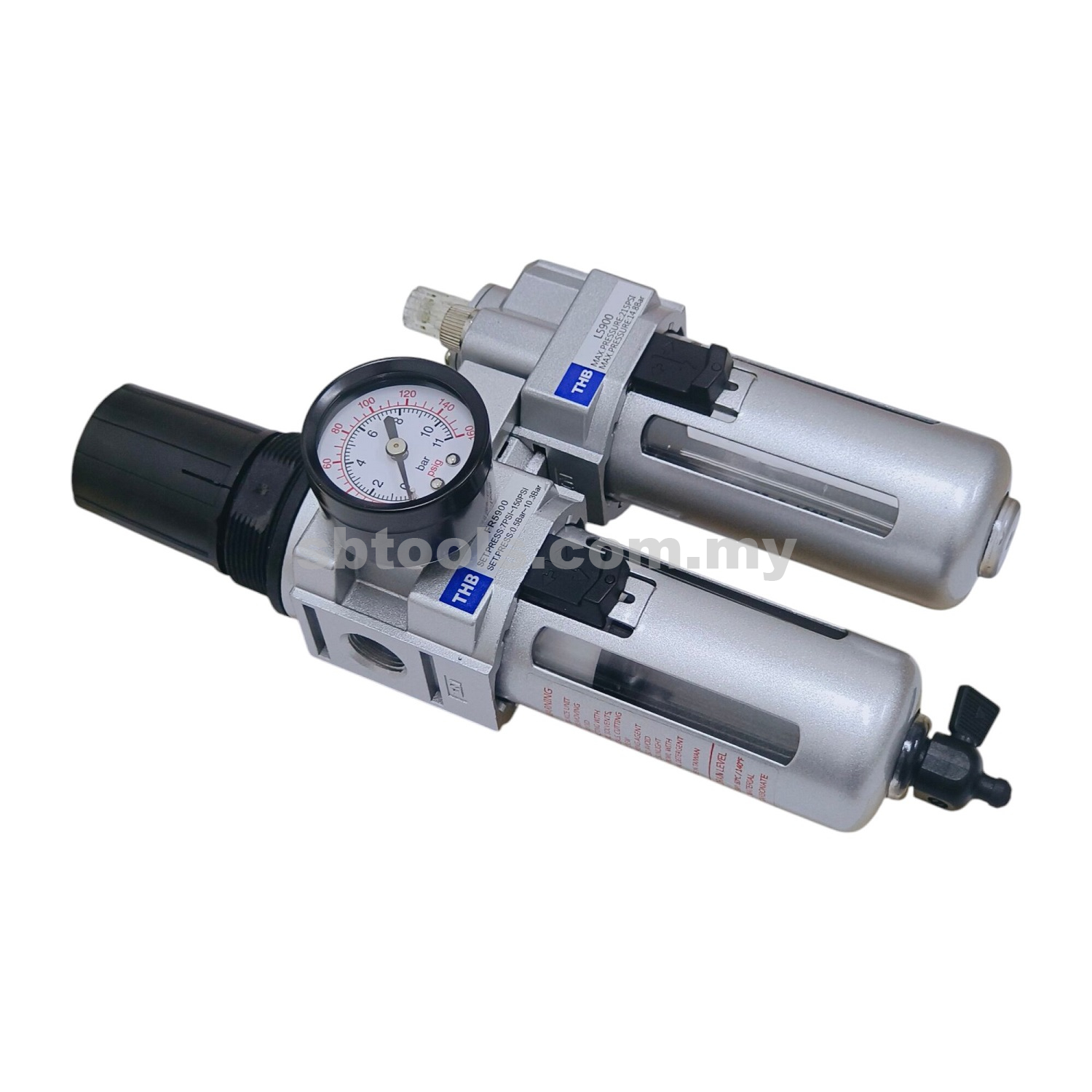

3/8″ Air Filter Regulator Lubricator
3/8″ Air Filter Regulator Lubricator
RM250.00
- The flow rate is 5 drops or greater/min under the following conditions : Inlet pressure of 0.5 MPa; Class 1 turbine oil (ISO VG32); Temperature at 20°C; Oil adjustment valve fully open.
- For a circuit that repeatedly turns ON and OFF on the outlet side, make the adjustment so that the average air consumption per minute becomes the minimum dripping flow rate or more.
- Lubrication cannot be properly performed if the operating flow rate is too low. Select an appropriately size lubricator by referring to the minimum dripping flow rate provided in the catalog.
12 in stock
Purchase this item and get 250 PointsDelivery within West Malaysia :
3 - 5 Working Days
3 - 5 Working Days
| Port Size (PT, NPT) | 3/8″ |
| Filter element | 5μ |
| Max Input Pressure (PSI) | 215 |
| Max Output Pressure (PSI) | 7~142 |
| Max Flow (L/min) | 3000 |
| Operating Temp Range | 5℃~60℃ |
| Drain Capacity | 55ml |
| Oil Capacity | 80ml |
| Recommendable Lubricants | ISO VG-3 |
| Weight | 1.6 kg |
|---|---|
| Dimensions | 24 × 12 × 8 cm |
